Wood Door w/ 12” x 12” Glass Kit

In Stock and Ready to Ship in

The fourth most common glass kit size on a commercial wood door is a 12″ x 12″ kit, which is also referred to as “Vision Lite” (V). Glass kits or “lite kits” are essentially windows inside of a door that provide light to rooms and ensure safety and sightline for well-traveled corridor and office doors. Commercial wood doors with 12″ x 12″ glass kits are available in single or double door packages, with options for louvers, multiple fire ratings, and come complete with door, frame, and hardware package.

Door Widths: 24″, 30″, 32″, 36″, 42″, 48″

Door Heights: 6’8″ (80 Inch), 7’0″ (84 Inch), 8’0″ (96 Inch)

Door Hardware: Lever Locks, Mortise Locks, Exit Device, Push/Pull

Options: Louvers, Glass Kits, Fire Rated Labels, Hardware Prep

FULLY CUSTOMIZABLE / COST-EFFECTIVE / IN STOCK SHIPS FAST!

To receive a quote on your project, please email [email protected], call 888-508-9875, or build an instant quote on our door builder!

BUILD INSTANT QUOTE

Colors & Finishes

We factory-stain and finish our wood doors in a controlled environment – offering Unfinished, Clear Finish, and six rich stain colors – so they arrive ready to install with a consistent, durable, professional look that saves you time by eliminating the need for on-site painting or staining.

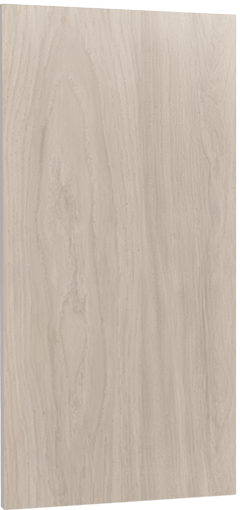

Unfinished Wood Door Color

Unfinished

Clear Wood Door Color

Clear

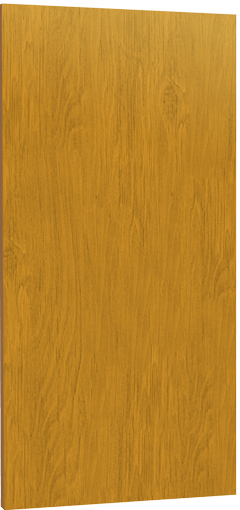

Wheat

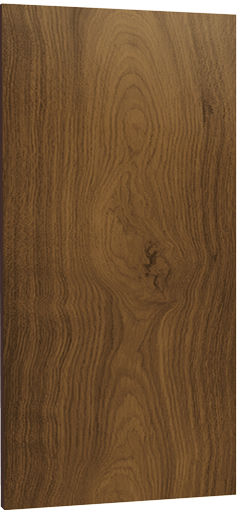

Chestnut Wood Door Color

Chestnut

Pecan Wood Door Color

Pecan

Cinnamon Wood Door Color

Cinnamon

Cherry Wood Door Color

Cherry

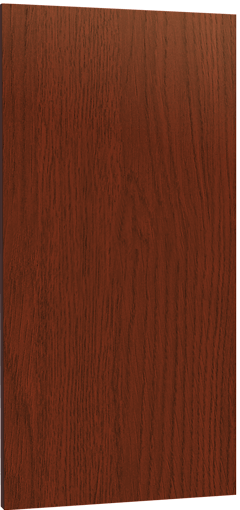

Mahogany Wood Door Color

Mahogany

Lite Kits

Commercial door glass kits or “lite kits” are essentially windows inside of a door that provide light to rooms and ensure safety and sightline for well-traveled corridor and office doors. We use an aesthetically pleasing “low profile” light kit, which we pre-install on the door – saving you valuable installation time. Glass kit includes the frame + glass + glazing tape. Finishes: Dark Bronze or Gray. Glass Types: 1/4″ clear tempered, 1″ clear insulated, or 1/4″ ceramic. (Only the ceramic option is fire rated).

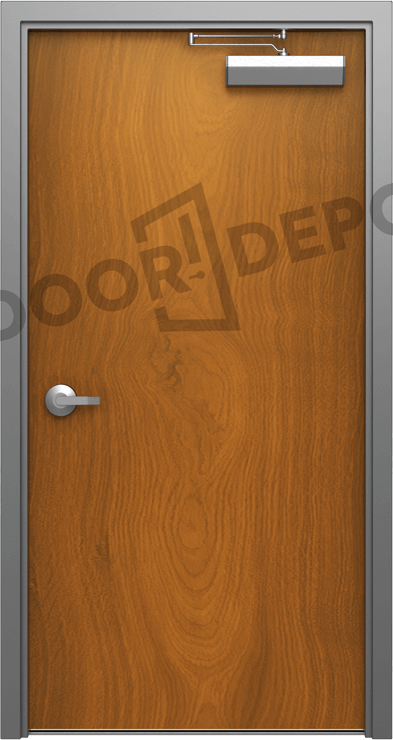

No Glass Kit

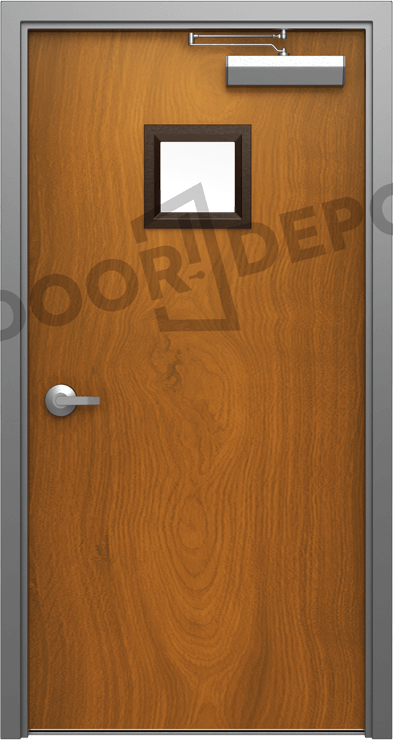

12" x 12"

💲Starting at $144 / Glass Kit (Pre-Installed)

🔥Fire Rated up to 3 Hours

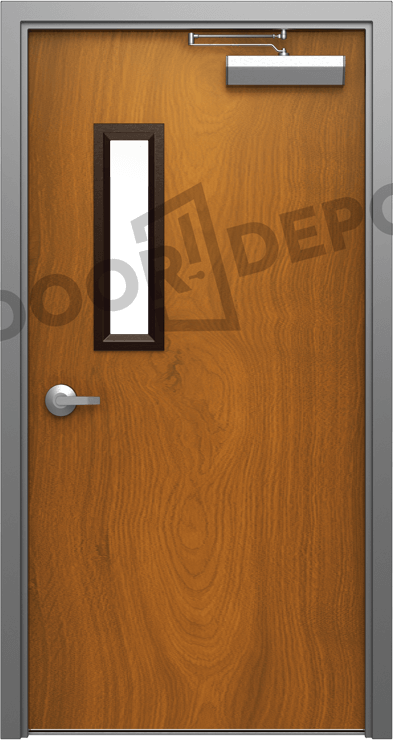

6" x 27"

💲Starting at $188 / Glass Kit (Pre-Installed)

♿ADA Compliant Placement

🔥Fire Rated up to 90 Mins

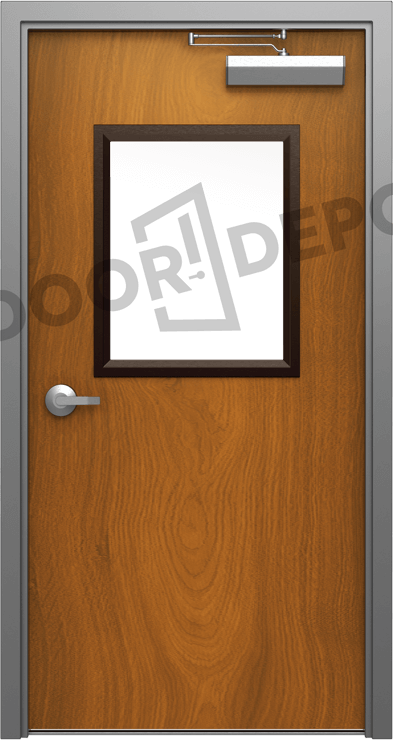

24" x 30"

💲Starting at $238 / Glass Kit (Pre-Installed)

♿ADA Compliant Placement

🔥Fire Rated up to 90 Mins

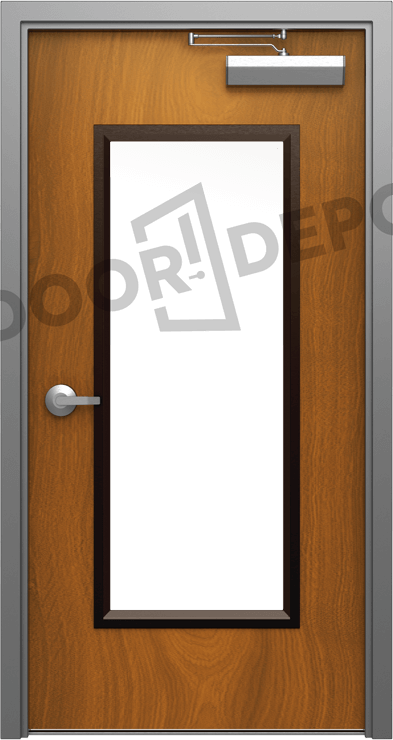

24" x 60"

💲Starting at $409 / Glass Kit (Pre-Installed)

♿ADA Compliant Placement

🔥Fire Rated up to 90 Mins

Louvers

Commercial door louvers are door vents that provide air ventilation between rooms or inside of closets. Louvered doors help ventilate rooms when closed while still providing privacy and security. Louvers are often used on doors within restrooms, wet rooms, utility rooms (electrical, mechanical, machinery), and any opening where ventilation is essential. Our louver kits come pre-installed on the door – saving you valuable installation time on the jobsite. Finishes: Dark Bronze or Gray.

No Louver Kit

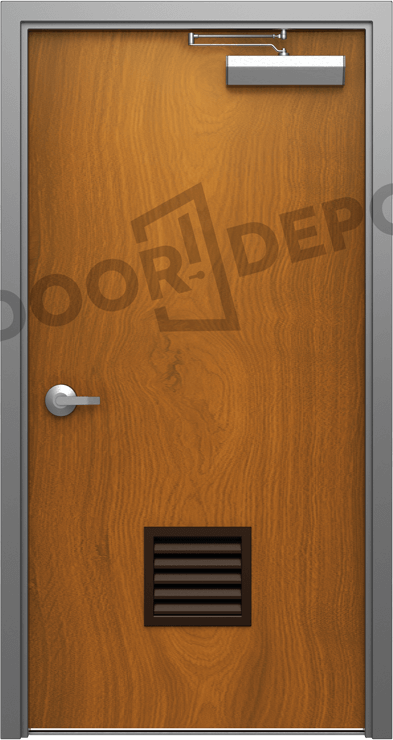

12" x 12"

💲Starting at $106 / Louver Kit (Pre-Installed)

🔥Fire Rated via Fusible Link

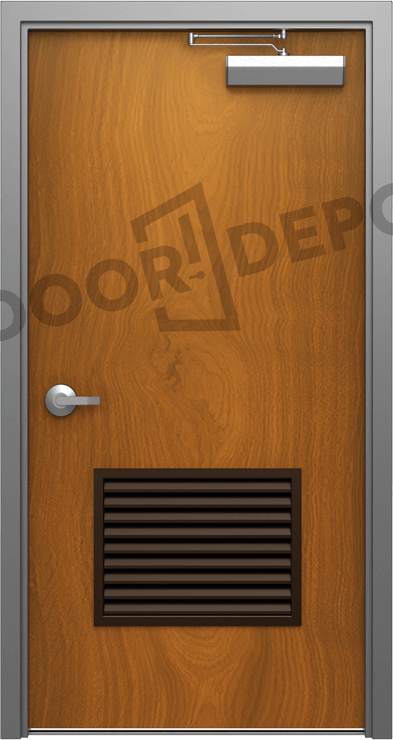

24" x 18"

💲Starting at $124 / Louver Kit (Pre-Installed)

🔥Fire Rated via Fusible Link

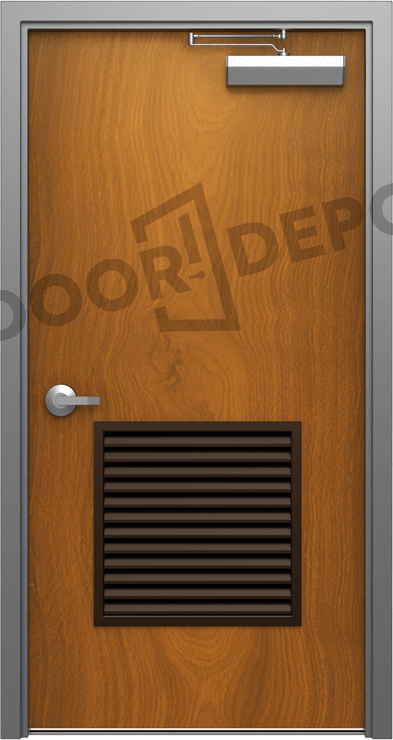

24" x 24"

💲Starting at $205 / Louver Kit (Pre-Installed)

🔥Fire Rated via Fusible Link

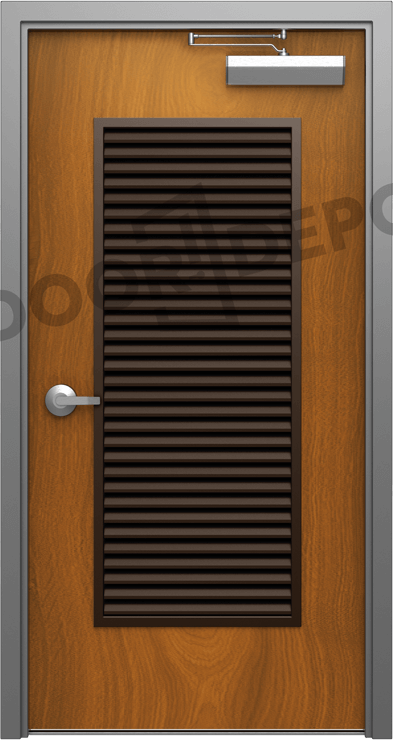

24" x 60"

💲Starting at $532 / Louver Kit (Pre-Installed)

Door Handing

Commercial door swing handing refers to the direction a door opens – specifically, which way it swings and on which side the hinges are located. It’s important for selecting and installing the correct hardware and for ensuring building code compliance. The hand of a commercial door is always determined from the outside or keyside.

LH

Left Hand

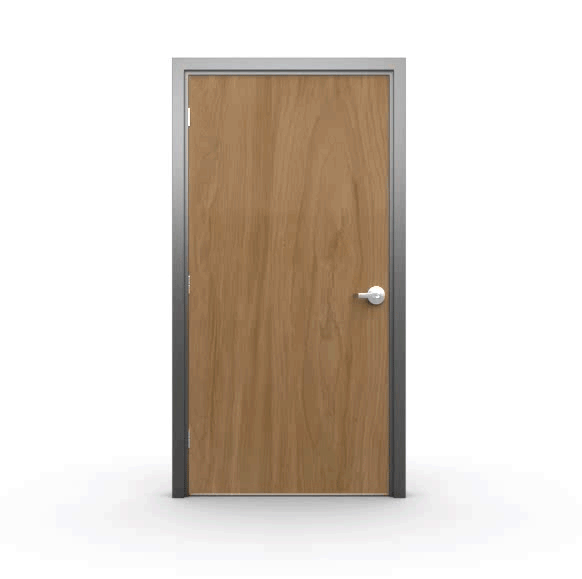

RHR

Right Hand Reverse

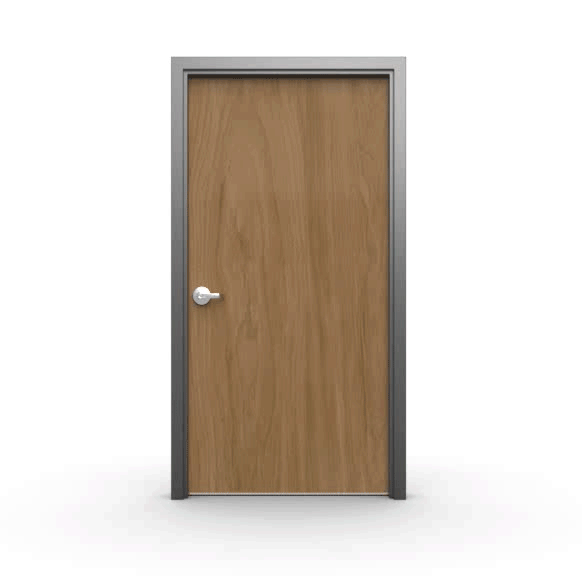

RH

Right Hand

LHR

Left Hand Reverse

Fire Ratings

Fire-rated wood doors offer fire and smoke resistance while maintaining the warmth and style of natural wood. Building codes and the wall’s fire-protection classification establish the door rating needed for compliance and safety. The fire classifications for wood doors are as follows:

20 Minutes

45 Minutes

60 Minutes

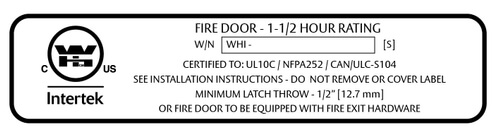

90 Minutes

Door Latch Hardware

Commercial steel door “prep” refers to the process of preparing a door for the installation of hardware, such as locks, handles, hinges, and other types of door hardware. We offer the following door preps on metal doors:

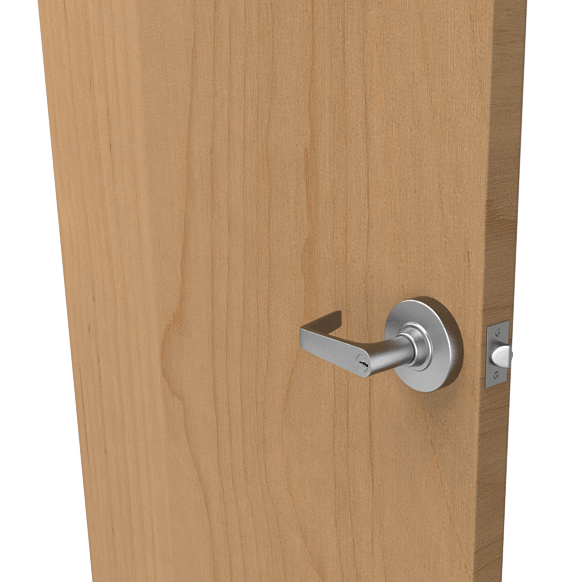

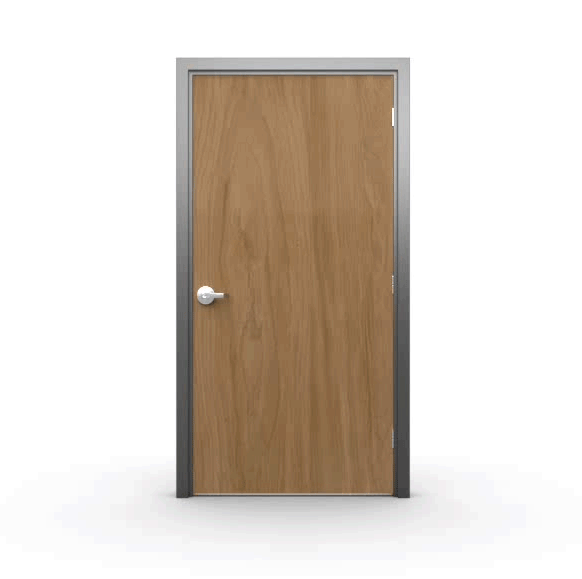

Leverset

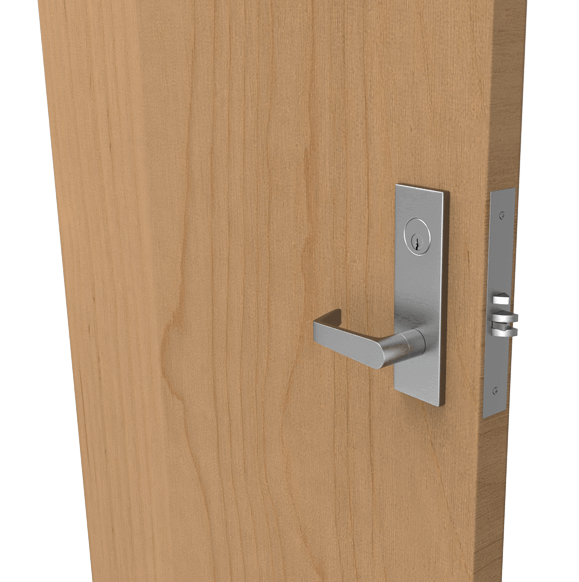

Mortise Lock

Panic Exit Device

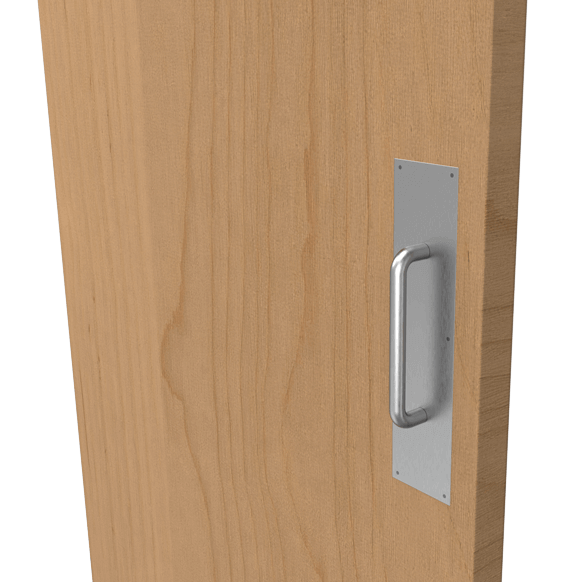

Push Pull

Weatherization

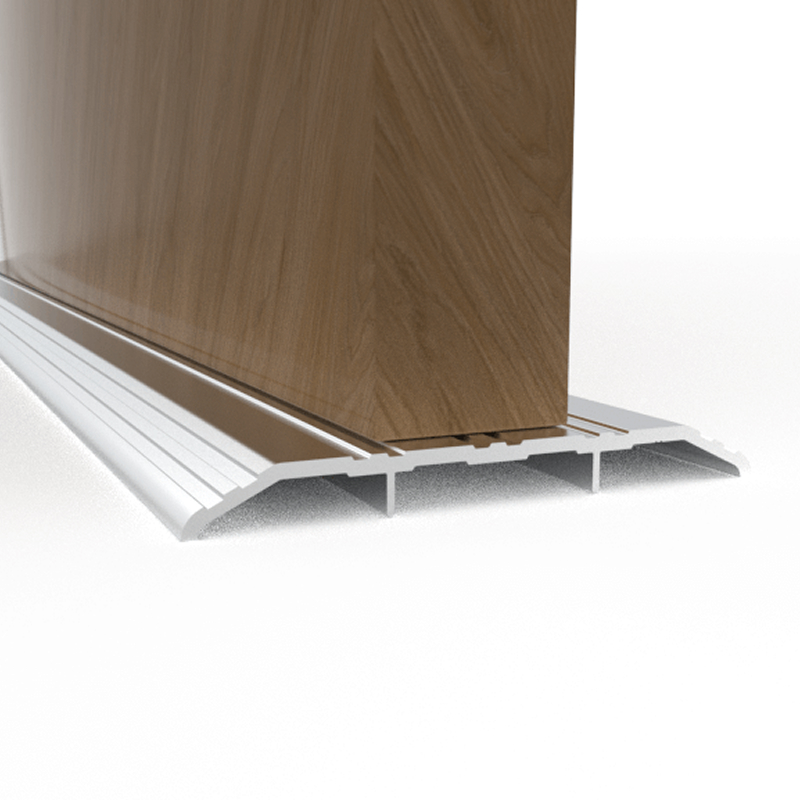

Saddle Threshold

Saddle Threshold

  • ADA Compliant.
  • Creates a smooth transition between flooring surfaces.
  • Common in interior applications.

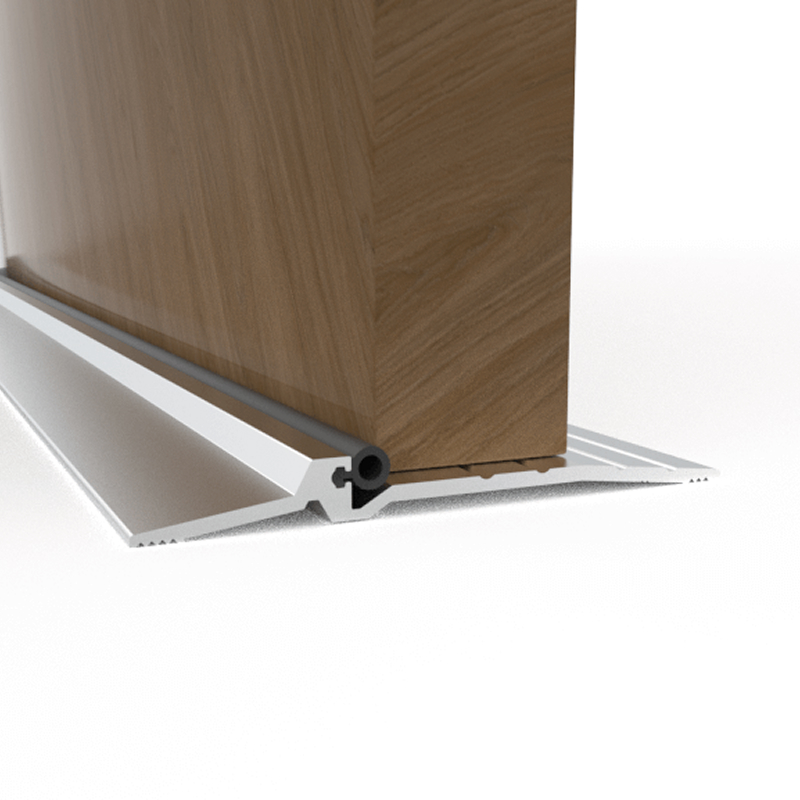

Bumper Threshold

Bumper Threshold

  • ADA Compliant.
  • Blocks air, water, dust, pests, and noise.
  • Common in exterior door openings.

Accessories

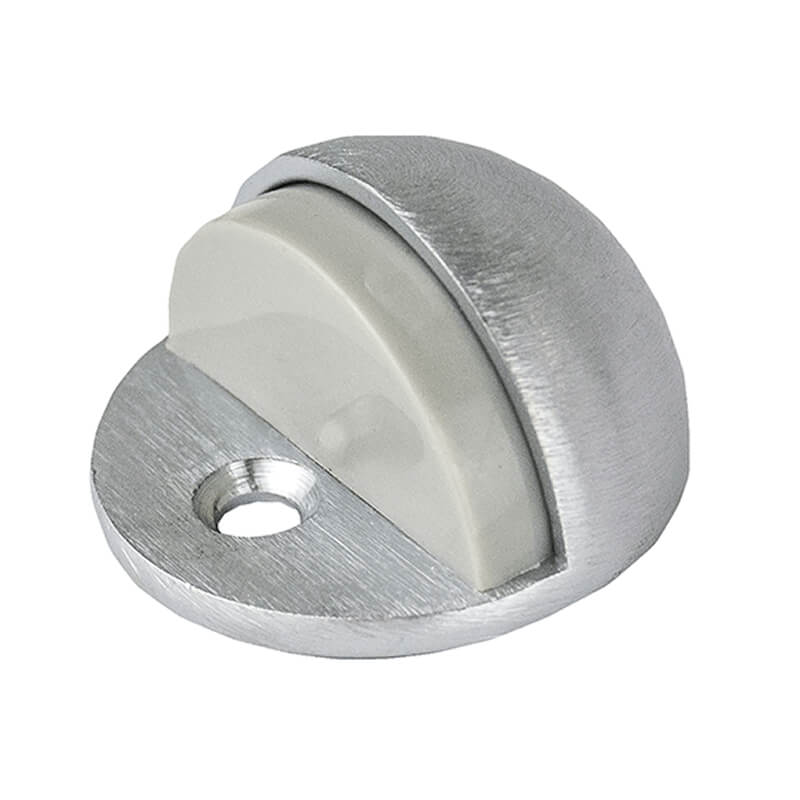

Floor Stop

Floor Stop

  • ADA Compliant.
  • Floor-mounted stop that prevents a door from swinging into and damaging a wall or object.
  • Protects walls, hardware, and door finishes.
  • Common in offices, schools, and commercial buildings.

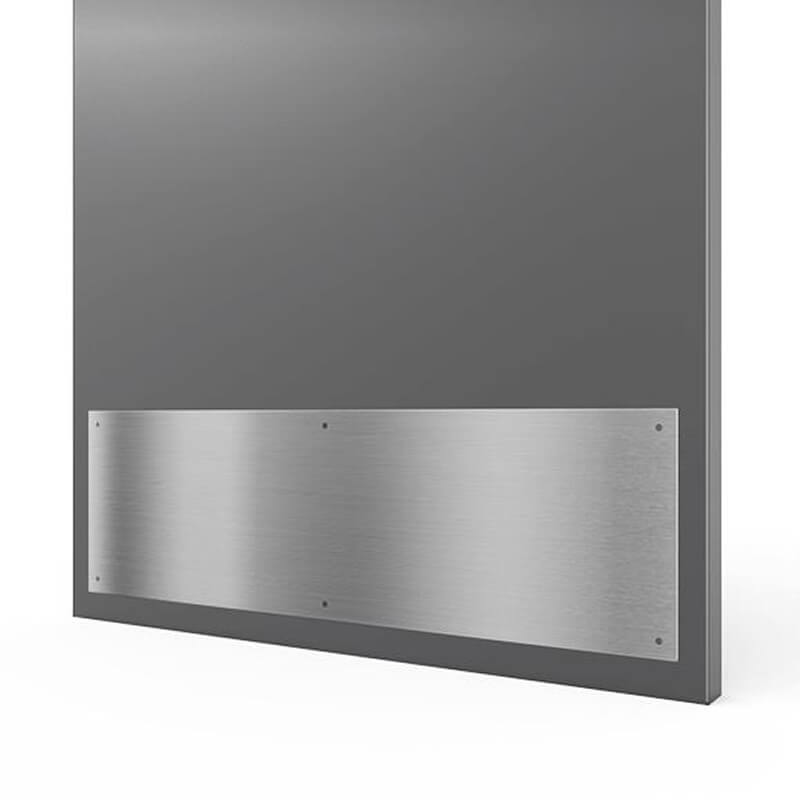

Kick Plate

Kick Plate

  • Stainless steel plate mounted at the bottom of a door.
  • Protects against dents, scratches, and everyday wear.
  • Common on high-traffic commercial doors.
  • 10” Height. Width is 2” less than door width.

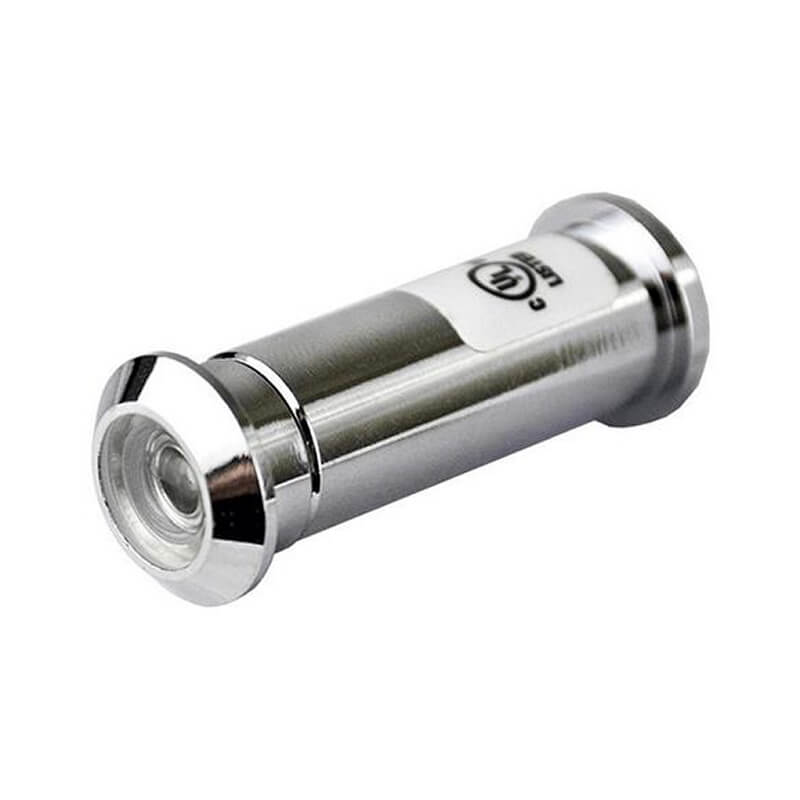

Door Viewer (Peephole)

Door Viewer (Peephole)

  • ADA Compliant (when mounted at proper height).
  • Wide-angle lens for viewing outside without opening the door.
  • Enhances safety and security.
  • Common on hotel, apartment, and residential unit entry doors.

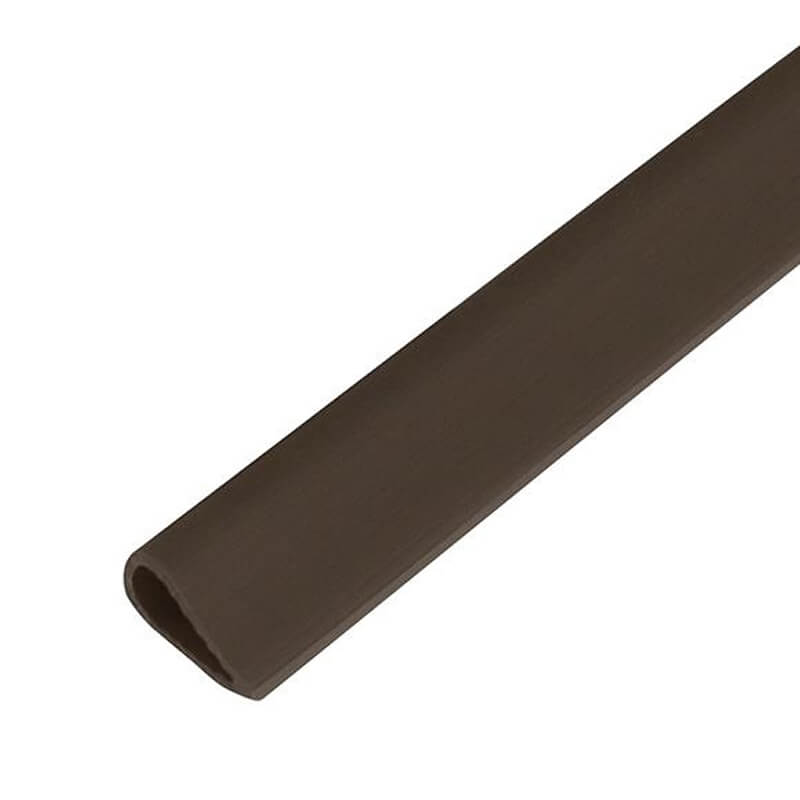

Smoke Seal

Smoke Seal

  • Self-adhesive silicone gasketing for door edges and frames.
  • Blocks smoke, drafts, sound, and air infiltration.
  • Required on fire-rated and life-safety doors.

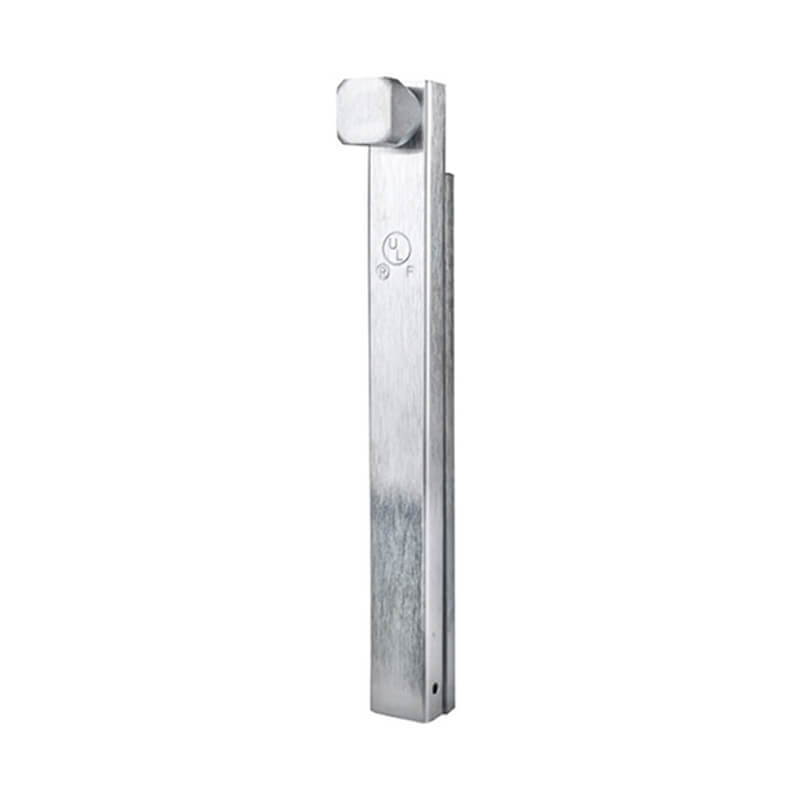

Surface Bolt

Surface Bolt

  • Metal bolt mounted on the surface of a door.
  • Slides into a strike or header to secure the door closed.
  • Adds extra security or holds one leaf of a pair of doors fixed.
  • Common on double doors, storage rooms, and utility areas.

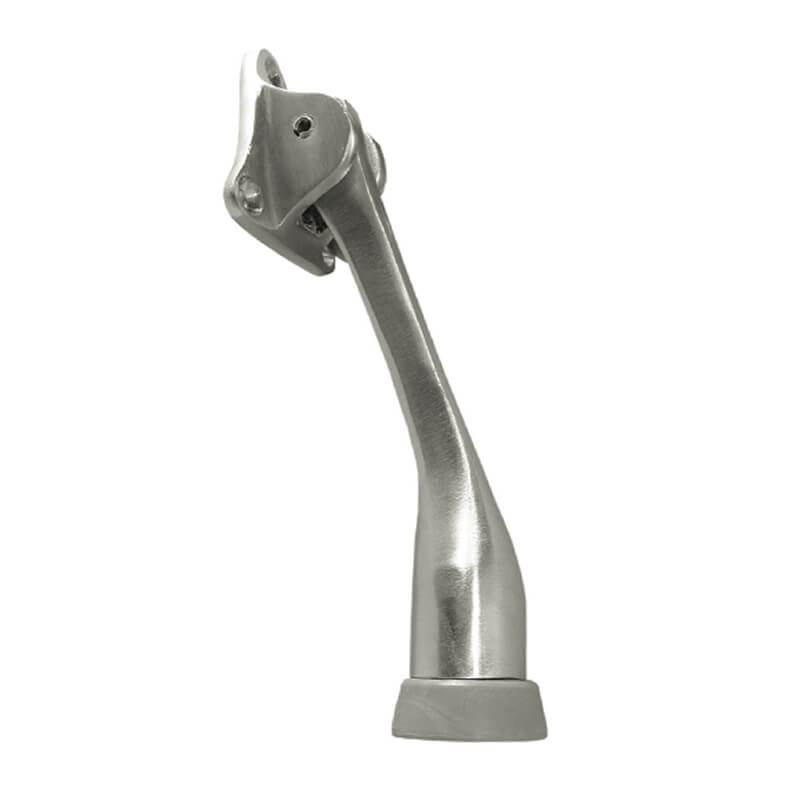

Door Stop (Kick Down)

Door Stop (Kick Down)

  • Foot-operated stop mounted at the bottom of a door.
  • Swings down to hold a door open, up to release it.
  • Prevents doors from slamming and adds convenience.
  • Common in offices, classrooms, and light commercial spaces.

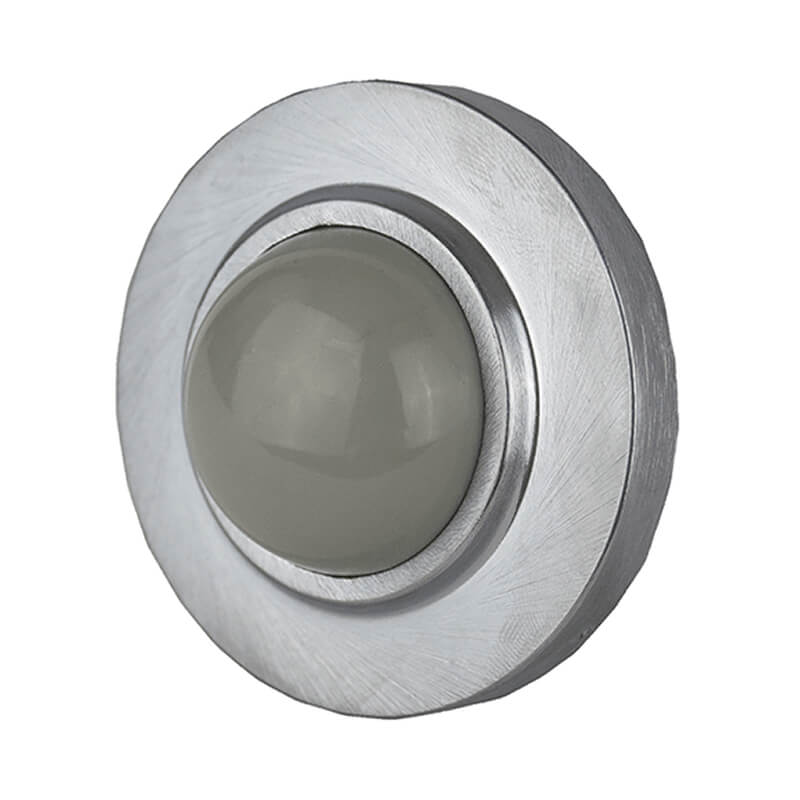

Wall Stop

Wall Stop

ADA Compliant
Wall-mounted dome stop that prevents a door handle or lever from damaging the wall.
Protects walls, hardware, and door finishes.
Common in offices, schools, and commercial buildings.

Door Sizes

Any size not listed below, is considered custom. Not all standard sizes are available from all manufacturers. Not all door styles available in standard sizes (e.g. panel doors only available in limited sizes).

Actual door size is less than nominal size, to accommodate for proper clearances and undercut (-1/4″ width, -7/8″ height) — 3070 (3’0″ x 7’0″) actual size = 35-3/4″ x 83-1/8″

All doors = 1-3/4″ thickness

6″8″ Height

Door Call Size Nominal Width Nominal Height
2068 2’0″ (24 inch) 6’8″ (80 inch)
2468 2’4″ (28 inch) 6’8″ (80 inch)
2668 2’6″ (30 inch) 6’8″ (80 inch)
2868 2’8″ (32 inch) 6’8″ (80 inch)
21068 2’10” (34 inch) 6’8″ (80 inch)
3468 3’4″ (40 inch) 6’8″ (80 inch)
3668 3’6″ (42 inch) 6’8″ (80 inch)
3868 3’8″ (44 inch) 6’8″ (80 inch)
4068 4’0″ (48 inch) 6’8″ (80 inch)

7’0″ Height

Door Call Size Nominal Width Nominal Height
2070 2’0″ (24 inch) 7’0″ (84 inch)
2470 2’4″ (28 inch) 7’0″ (84 inch)
2670 2’6″ (30 inch) 7’0″ (84 inch)
2870 2’8″ (32 inch) 7’0″ (84 inch)
21070 2’10” (34 inch) 7’0″ (84 inch)
3470 3’4″ (40 inch) 7’0″ (84 inch)
3670 3’6″ (42 inch) 7’0″ (84 inch)
3870 3’8″ (44 inch) 7’0″ (84 inch)
4070 4’0″ (48 inch) 7’0″ (84 inch)

8’0″ Height

Door Call Size Nominal Width Nominal Height
2080 2’0″ (24 inch) 8’0″ (96 inch)
2480 2’4″ (28 inch) 8’0″ (96 inch)
2680 2’6″ (30 inch) 8’0″ (96 inch)
2880 2’8″ (32 inch) 8’0″ (96 inch)
21080 2’10” (34 inch) 8’0″ (96 inch)
3480 3’4″ (40 inch) 8’0″ (96 inch)
3680 3’6″ (42 inch) 8’0″ (96 inch)
3880 3’8″ (44 inch) 8’0″ (96 inch)
4080 4’0″ (48 inch) 8’0″ (96 inch)
